Y4 - El Castillo - Aztec Temple - Measurement & Rotation


You will use

Measurement

Accurate alignment - Arrow Keys

Rotation

Duplication

This challenge will help you learn to be accurate with your measurements.

To keep the Temple exactly symmetrical all the measurements and placements must be exact.

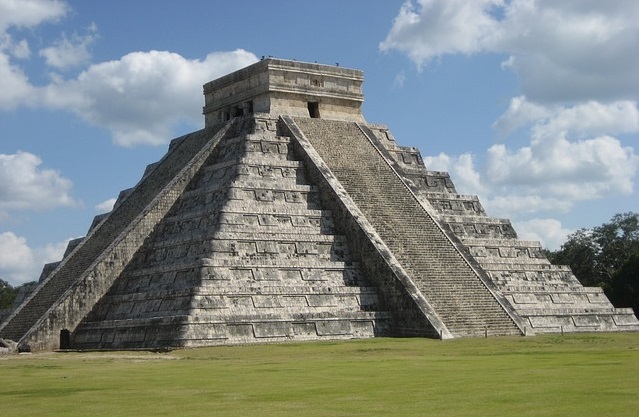

Chichen Itza - El Castillo

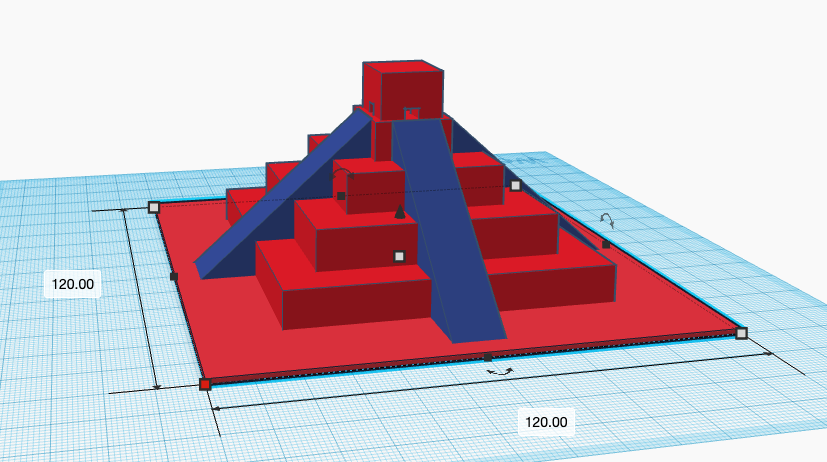

Base120mm
120mm
1mm

First Level80mm80mm10mm

Second Level60mm60mm20mm

Third Level40mm40mm30mm

Forth Level20mm20mm40mm

Ramps8mm50mm50mm

Top structure20mm20mm90mm

Changing the Snap Grid to 5.0mm helps with placement.

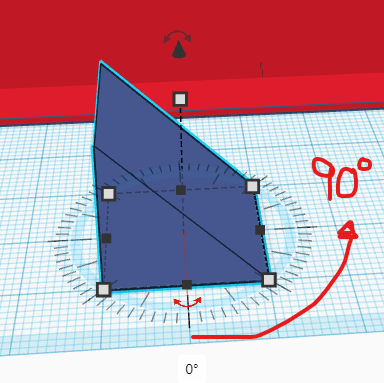

You will also need to duplicate and rotate the Wedge 90^ to fit into each side of the temple.

Rotate within the circle for large steps - 45, 90 rotations
