Mr Max - Can I create custom shapes?

Why do Lego sets come with unique pieces?

Why not always use the same blocks for all designs?

Before we go into the whole design we need to think carefully about the small pieces.

NB - This will save us time in the future!

Problem

I want to design a building with curved window frames.

How would you do this?

Think of it like this.  To make our final building unique, we need to create our own set of custom shapes for our design.  A bit like creating our own Lego bricks!

Worked through example...

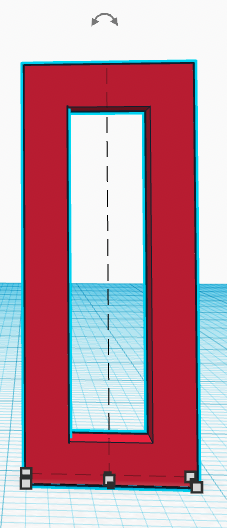

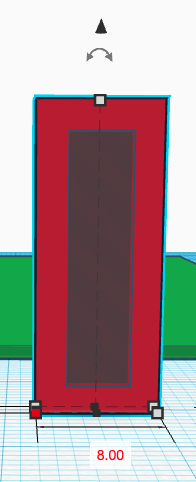

First, create the crude shape.

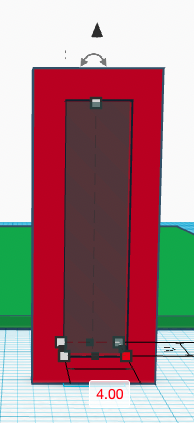

Measurements are important!

  1. Screen Shot 2565-09-30 at 10.10.38

  2. Screen Shot 2565-09-30 at 10.10.50

  3. Screen Shot 2565-09-30 at 10.11.44

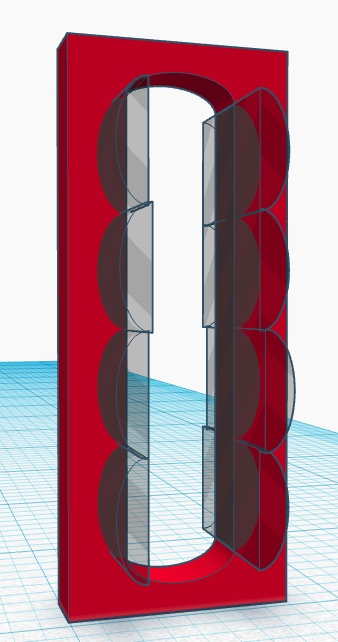

Next, create the details of the shape.

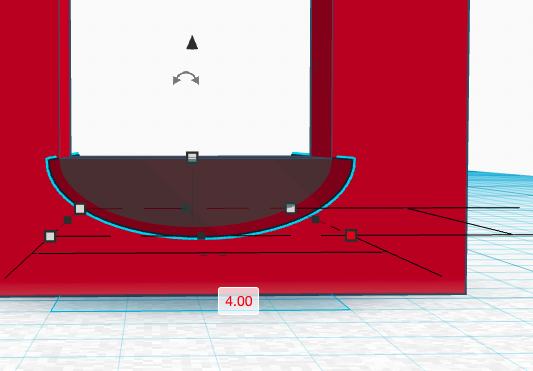

Use Hole shapes to cut away from the original.

  1. Screen Shot 2565-09-30 at 10.22.27

  2. Screen Shot 2565-09-30 at 10.23.45

  3. Screen Shot 2565-09-30 at 10.24.07

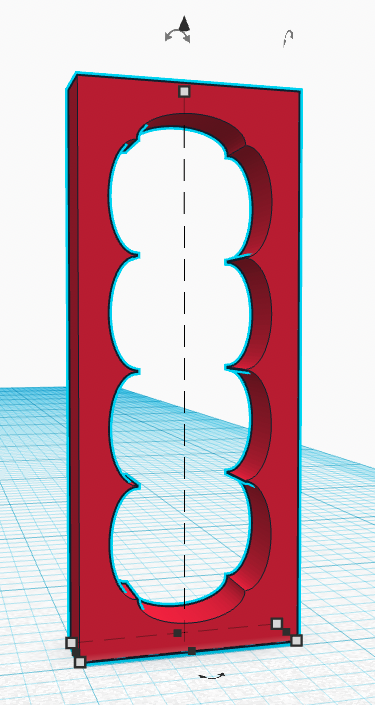

Repeat, for all the detail you want on the shape.

  1. Screen Shot 2565-09-30 at 10.32.36

  2. Screen Shot 2565-09-30 at 10.32.55

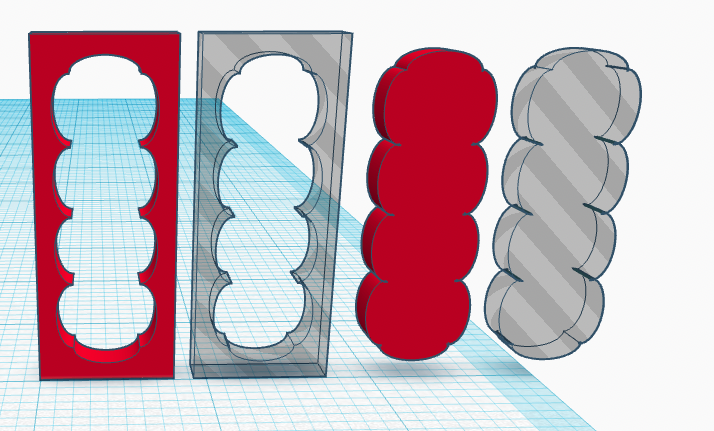

Use your new shape(s) how you like.

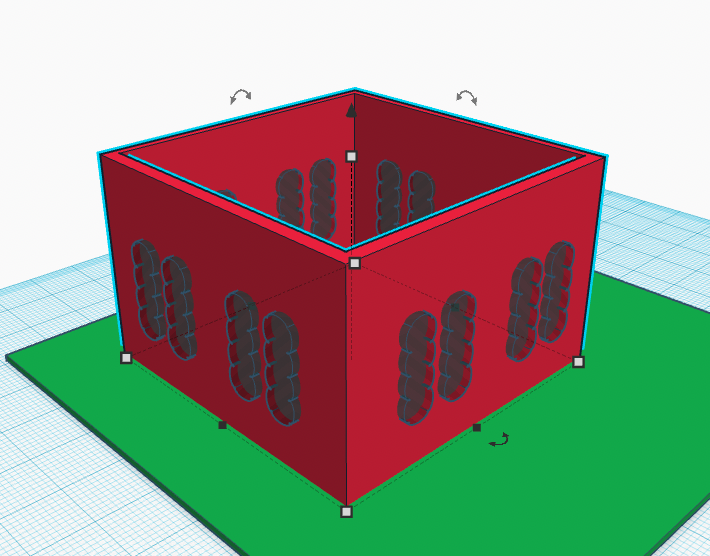

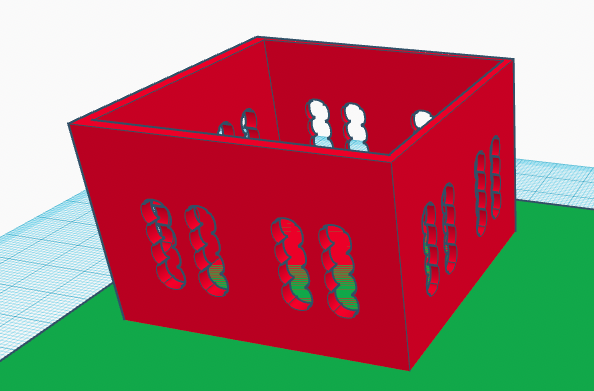

Finally, use your new piece to make your design unique.



Learning Intention

Can I create custom shapes?


Success Criteria

I can break a design into smaller parts

I can measure shapes

I can calculate differences

I can group solid and hole

I can duplicate to save time
