Yr3 MC - Inventions - Logic Gates

Logic gates are the foundation blocks of modern computing.  The term 'logic gate' just refers to an object that you put one or more inputs into and get one or more outputs from. That's it.

In the Minecraft simulations below the gate is a coloured block of wool.

These gates are all about input and output, and in Minecraft, as well as in digital logic, there are only two possible types of inputs and outputs.

 ON and OFF. Either your Redstone is powered, or it isn't.

The levers are in different positions, but the lamps are all on. Why?



        Logic Gates - Output ON        by MrMaxICT        on Sketchfab

Imagine the coloured block is a gate - What goes through the gate?

Today we will build four different types of Logic Gates and see what each one can do.

As a class look at these four gates and describe what you see together.

Using One input

1) - Build a straight through gate

Input = Output Gate



        Input = Output Gate        by MrMaxICT        on Sketchfab

2) - Build a NOT Gate

 Input ≠ Output  (Opposite)

This gate uses a Redstone torch to reverse the output.



        NOT Gate        by MrMaxICT        on Sketchfab

Using Two Inputs

3) - Build an OR Gate (on or the other switch)

Two inputs are both connected to the output so either one can turn on the lamp.



        OR Gate        by MrMaxICT        on Sketchfab

4) - Build an AND Gate (both Inputs on = Output on)

Both the levers are connected to Redstone torches and there is one before the output too.  This creates 2 NOT gates on the inputs and one on the output.  This means both levers 1 AND 2, must be on to turn the lamp on.



        AND Gate        by MrMaxICT        on Sketchfab

Logic gates perform basic logical functions and are the fundamental building blocks of digital integrated circuits. Most logic gates take an input of two binary values, and output a single value of a 1 or 0. Some circuits may have only a few logic gates, while others, such as microprocessors, may have millions of them.

Task 1  - Building your own gates

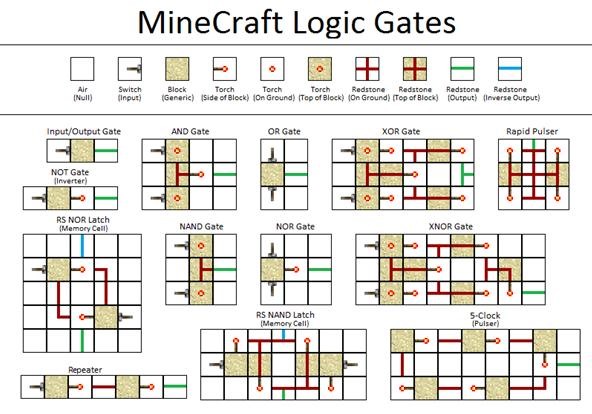

Resources you will need

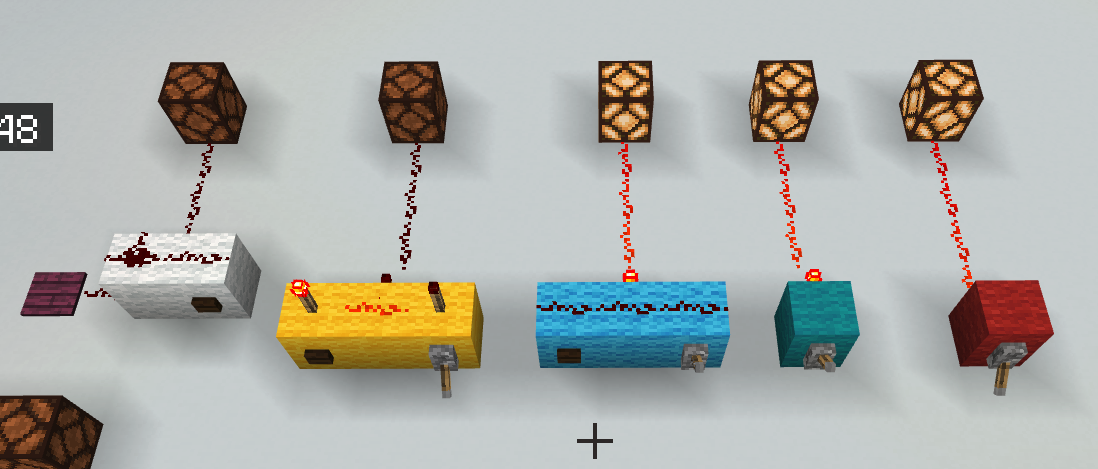

Build these four types of Logic Gate in Minecraft.  What do you notice about their function?

Can you predict if the Lamp will be On or Off when you move the Levers?

Task 2

Use signs to label the Logic Gates correctly

Sign - Click and Type to label your logic gates

Task 3

Take a screen shot and post this on yo Google Site.

Press - Command + Shift + 3

  1. Screenshot keys

  2. My logic gates

Crop the image

Click Done and then insert into Sites

  1. Use a content block or ...

  2. insert Images and Text separately.

Reflection Questions

What does your image show you can build in Minecraft?

What did you find tricky?

What are you proud of?

Plenary Questions

What else could the switches power?

Which of these pistons will be Up?

Plenary Task



        Logic Gates with Pistons -  Mixed Output        by MrMaxICT        on Sketchfab

Extension

Can you apply these designs to build more complex gates?

Larger image

More complex Logic Gates

What does this do?



        S-Clock Pulser with Redstone        by MrMaxICT        on Sketchfab

Learning Intention

Can I innovate?

Success Criteria

I can build logic gates

I can predict Input / output accurately

I can explain how my logic gates work

I can share my learning
